HIGHSIDER LED MAIN HEADLIGHT INSERT TYP 6 WITH DRL, ROUND, 5 3/4 INCH

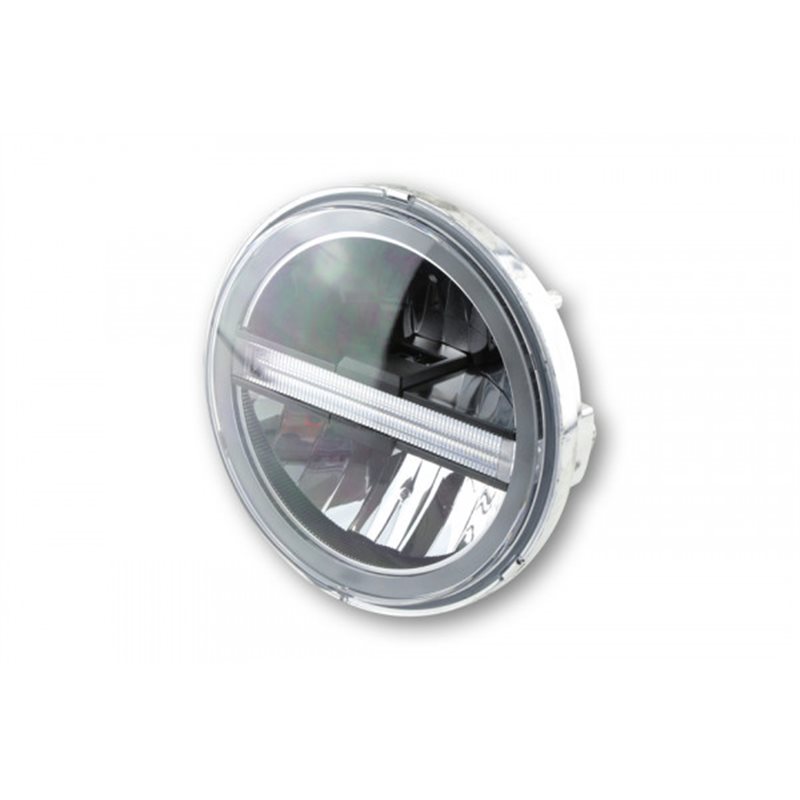

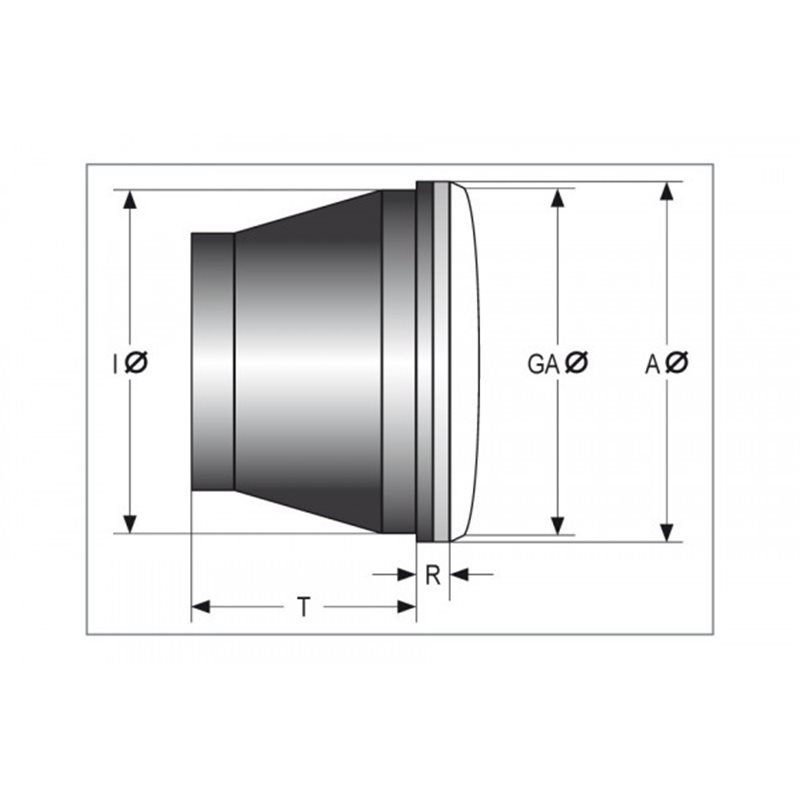

HIGHSIDER LED main headlight insert TYP 6 with DRL, round, 5 3/4 inch, E-marked.Round, chromed insert with high-beam, low-beam, daytime running light and parking light ring. The daytime running light is in the middle in a strip and the low beam is in the upper half of the insert. Is the high beam lighting on shine the light halves upper and bottom.Our highlights give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!DimensionsDiameter A = 143 mmDiameter GA = 133 mmDiameter I = 131 mm, T = 70 mm, R = 13 mmCable length = 400 mmCable assignment:Plug = 3-pinsWhite = low beam (+)Blue = high beam (+)Green = ground (-)Red = DRL (+)Brown = parking light (+)Delivery contents: 1 Pcs. incl. plug housingOptional accessories:Item no. 208-108 DRL CONTROL- BOX CB1, for motorcycles without light switchItem no. 240-044 On/off switch for light with clamp for handle bar mounting
