FARO DELANTERO LED HIGHSIDER RENO TIPO 1 (MONTAJE LATERAL)

HIGHSIDER 7 INCH LED HEADLAMP RENO TYPE 1

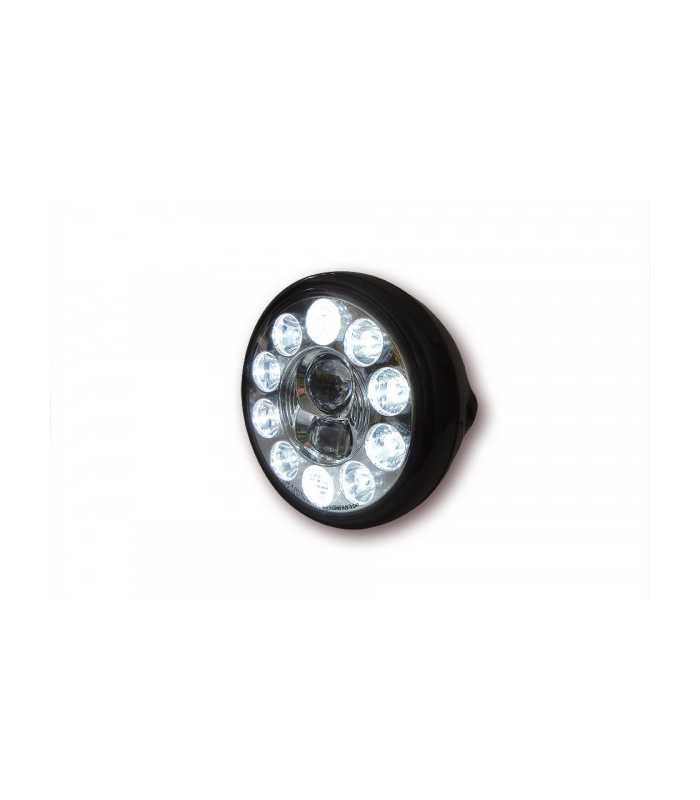

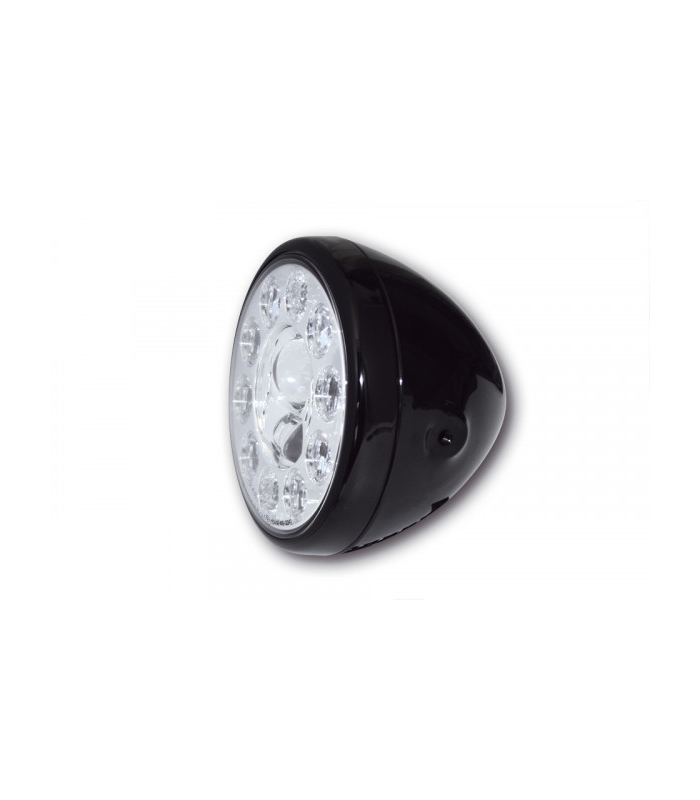

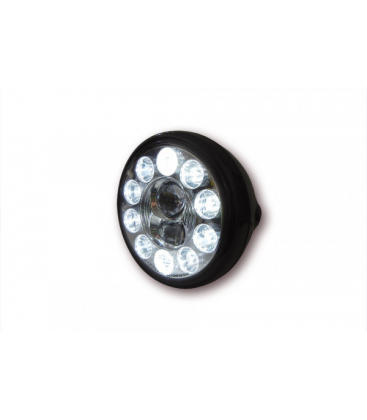

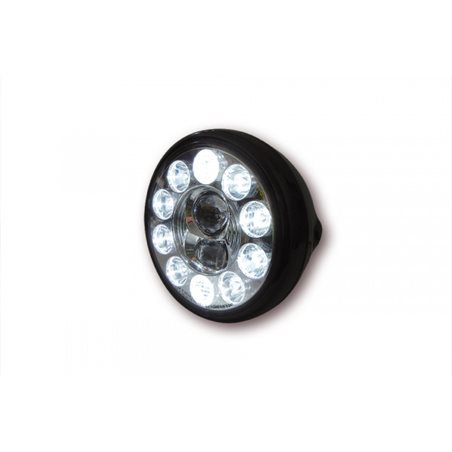

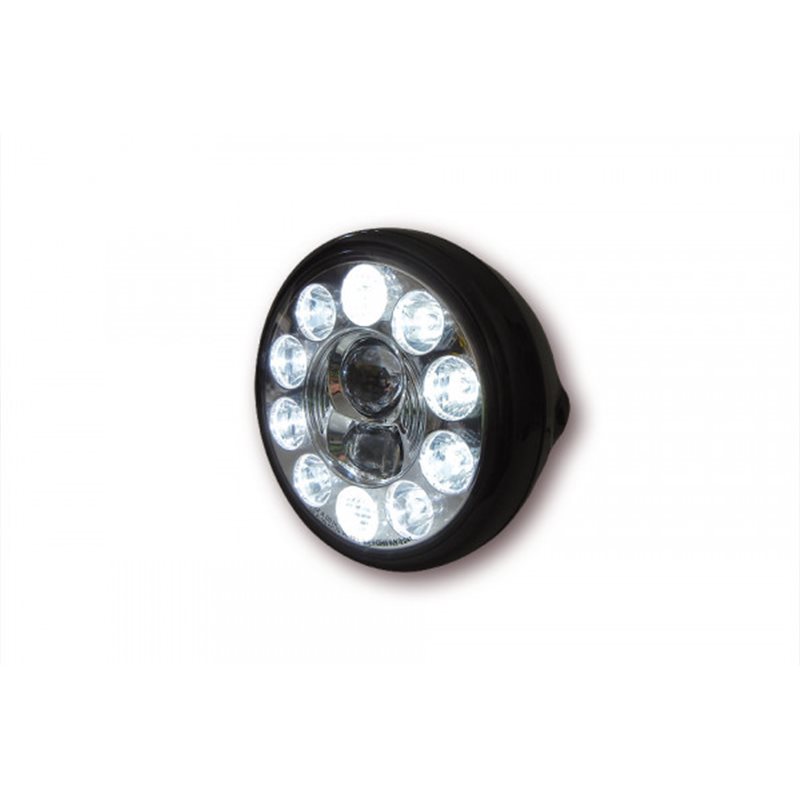

HIGHSIDER 7 inch LED spotlight RENO TYPE 1 for side mountingInnovative power LED headlight with parking light and round, clear glass. The metal housing is high-gloss black lacquered or chrome-plated and has a chrome-plated, asymmetrical - for right-hand traffic only - insert, e-marked.Our highlights - give your bike an unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!Headlight dimensions: Housing diameter: 200 mmHeadlamp insert diameter: 178 mm Housing depth: 160 mmDistance between mounting holes (center - center): 170 mmDistance between mounting hole (centre) and housingTechnical dataPower consumption at 12.5 Volt DC:Low beam: only 1.9 amperes (approx. 23.75 watts).12 Volt 1069 Lumen Only the two inner ellipsoid inserts light up.High beam: only 1.4 Ampere (approx. 17.5 Watt).12 Volt 1100 Lumen Only the outer LED circuit lights up. When the headlight flasher is activated, all LEDs light up.Connections on the reflector in the headlight housing:Black cable = Ground (-)Red cable = high beam (+)Blue cable = low beam (+)Additional 2 cables for parking light: black = ground (-), red = parking light (+)Connections Mating connector:Green cable = ground (-)Blue cable = high beam (+) White cable = low beam (+)Scope of delivery: 1 piece including mating plug (connecting plug) with 210 mm cable, for H4 halogen bulbsNote:Asymmetrical reflector - only approved for right-hand traffic
