HIGHSIDER APOLLO LED TAILLIGHT/INDICATOR UNIT

HIGHSIDER APOLLO LED TAILLIGHT/INDICATOR UNIT

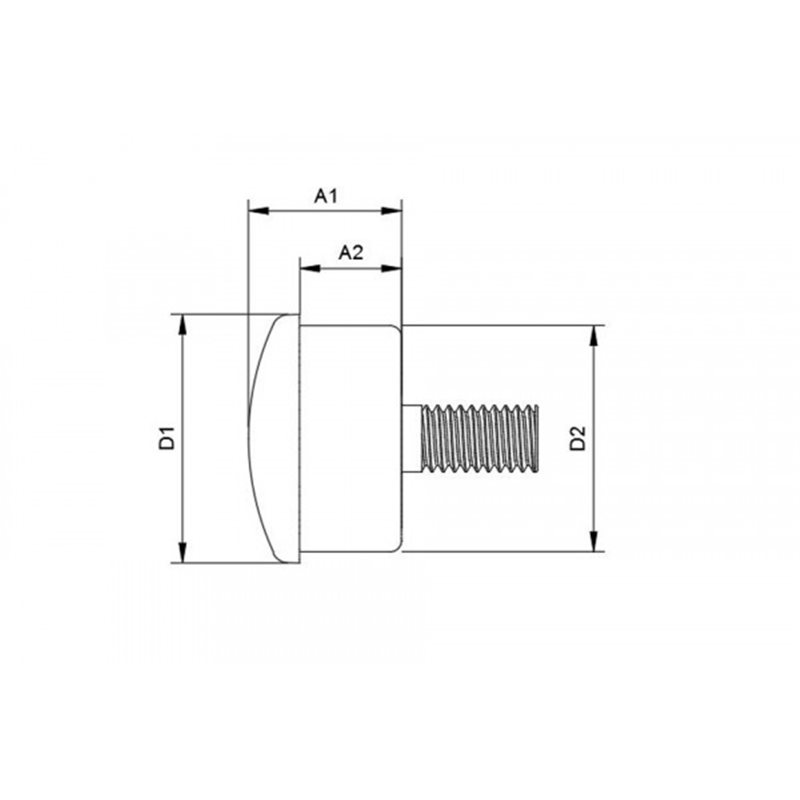

HIGHSIDER APOLLO LED taillight/indicator unitLED taillight/indicator ideal for surface mounting or to build in with a black aluminium housing and smoke lens, E-marked.Modern light technology in extreme small dimension with 2 very intense SMD in the centre. COBs (Chip On Board) complete the light source at the external ring. A nice upgrade for every motorcycle. The unit includes a anodized alu ring, which fits above the base body.The best until the end HIGHSIDER taillight and taillight / indicator series for the safety you need and the look you want whatever you ride: cruiser, scooter or racer.DimensionsA1: 13 mm A2: 9 mm D1: 22 mmD2: 20 mmThreaded bolt: M8, length: 12 mmCable assignmentBlack cable = ground (-)Yellow cable = taillight (+)Red cable = stoplight (+)Blue cable = indicator (+)Delivery contents: 1 pairNote Unit can be built in flat way by boring a hole of 20 mm or by mounting the bracket plate at the motorcycle.Order additionallyHIGHSIDER indicator/front position light: Item-No. 254-172HIGHSIDER indicator unit: Item-No. 204-170
