FARO DELANTERO LED HIGHSIDER HD-STYLE TIPO 1 (MONTAJE INFERIOR)

HIGHSIDER 7 INCH LED HEADLAMP HD-STYLE TYPE 1

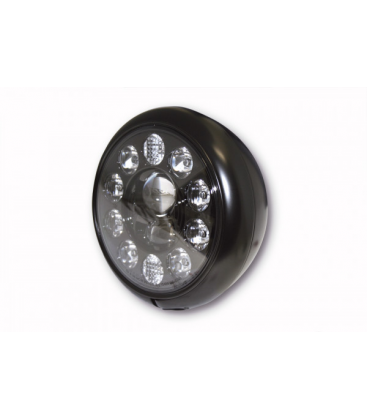

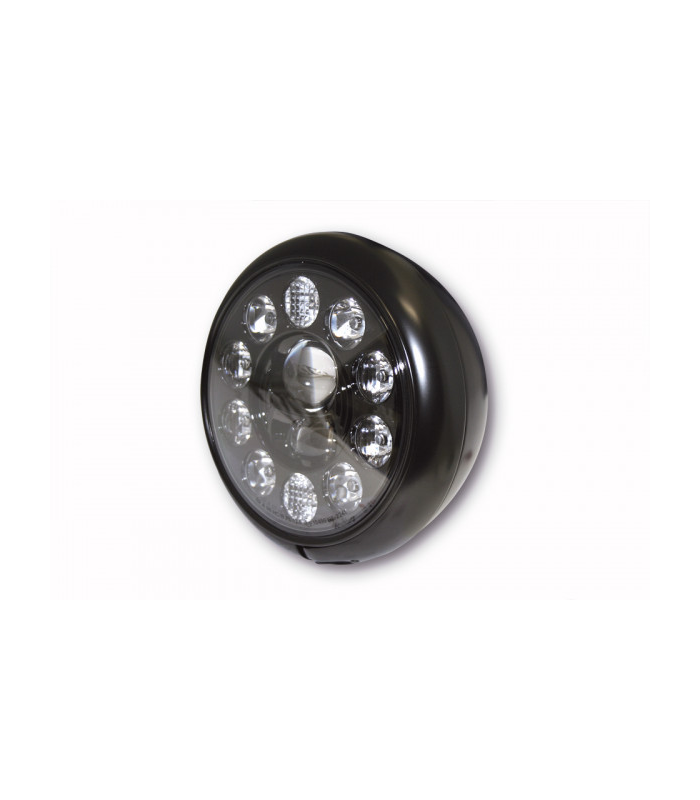

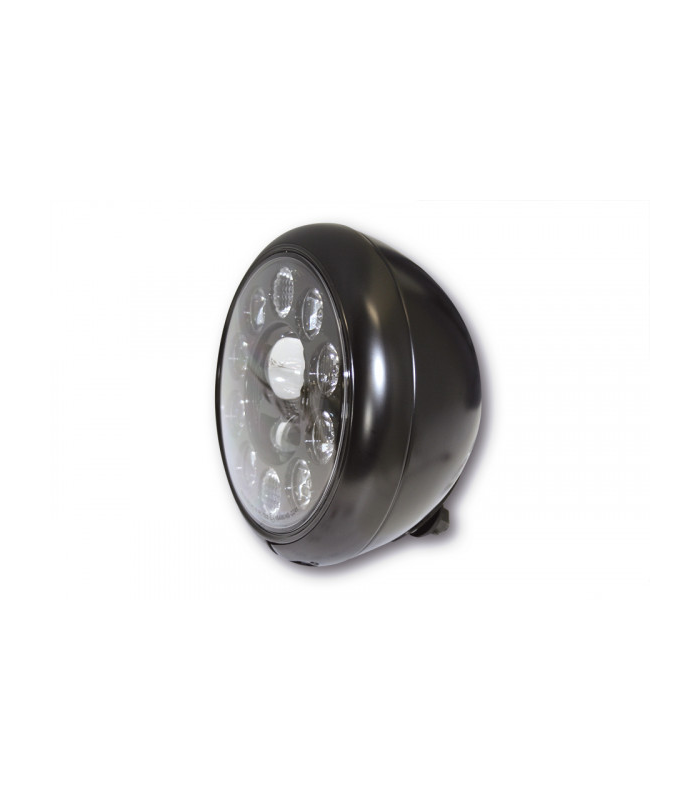

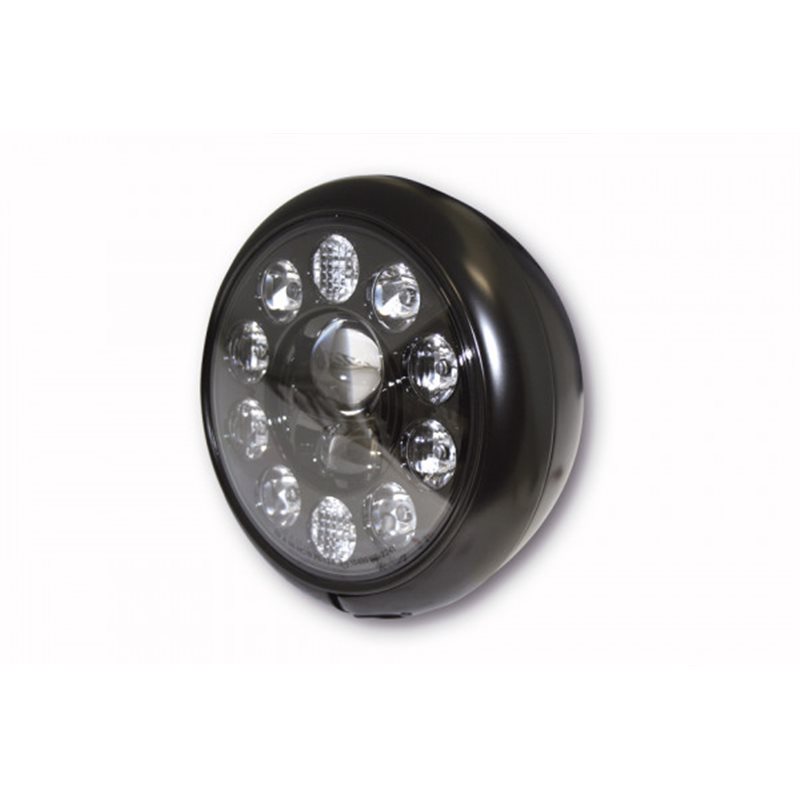

HIGHSIDER 7 inch LED spotlight HD-STYLE TYPE 1 for lower mountingStylish-innovative power LED spotlight in a purist design with sidelight function and a round, clear glass. The oval metal housing is chrome-plated and has a chrome-plated asymmetrical insert - only approved for right-hand traffic - or a black housing with a black insert. E-approved.The bright joy - give your bike an unmistakable style! The unusual design and the perfect technology of the HIGHSIDER headlight series make it a highlight in any case!Dimensions:Housing diameter: 220 mmDiameter of headlight insert: 178 mm Depth: 155 mmDistance between mounting holes on holder (centre - centre): 65 mmPower consumption at 12.5 Volt DC:Low beam: 1.9 amps (approx. 23.75 watts).12 Volt 1069 Lumen.Only the two inner ellipsoid inserts light up.High beam: 1.4 amperes (approx. 17.5 watts).12 Volt 1100 Lumen Only the outer LED circle lights up. When the headlight flasher is activated, all LEDs light up.Connections on the reflector in the headlight housing:Black cable = ground (-)Blue cable = low beam (+)Red cable = high beam (+)Additional 2 extra cables for parking light:Red cable = parking light (+)Black cable = ground (-)Scope of delivery: 1 piece including mating plug (connecting plug) with 210 mm cable, for H4 halogen bulbs, connections:Green cable = ground (-)Blue cable = high beam (+) White cable = low beam (+)Notes:Asymmetrical use - only permitted for right-hand traffic.
