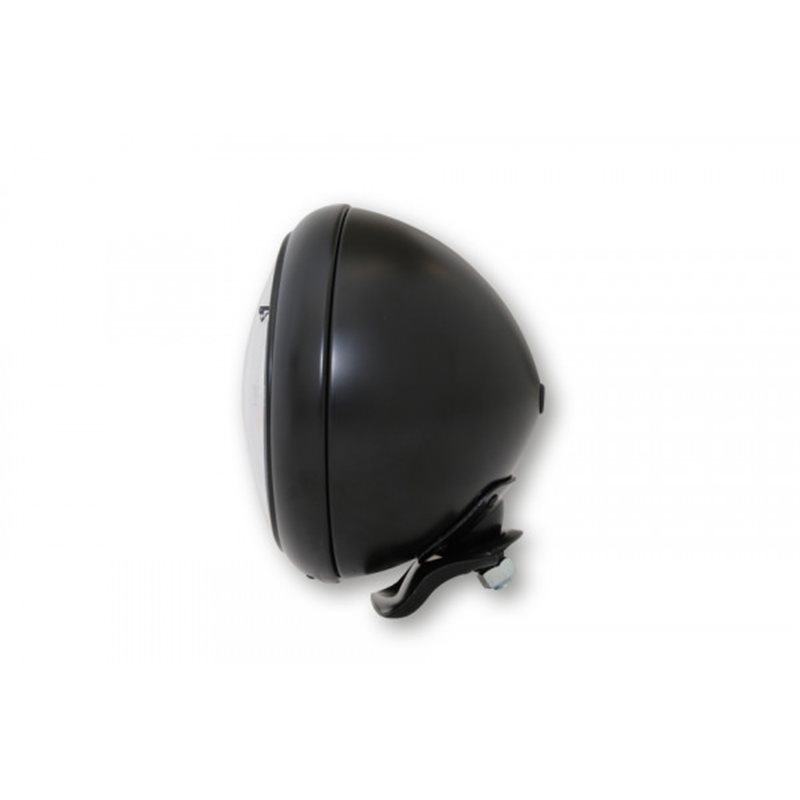

FARO DELANTERO LED HIGHSIDER HD-STYLE TIPO 3 (MONTAJE INFERIOR)

HIGHSIDER 7 INCH LED HEADLAMP HD-STYLE TYPE 3

HIGHSIDER 7 inch LED spotlight HD-STYLE TYPE 3 for lower mountingStylish-innovative power LED headlight in a puristic design with parking light function and round, clear glass. The metal housing is available in black or chrome, the blend and the asymmetrical insert - only approved for right-hand traffic - are chrome-plated, E-tested.The bright joy - give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in any case!Dimensions:Housing diameter: 220 mmHeadlamp insert diameter: 178 mm Depth: 155 mmDistance between mounting holes on holder (centre - centre): 65 mmConnections on the reflector in the headlight housing:Black cable = ground (-)Red cable = low beam (+), power consumption: at 12 Volt 18 Watt, approx. 1132 Lumen.White cable = high beam (+), power consumption: at 12 Volt 30 Watt, approx. 1770 Lumen.Brown cable = parking light (+), power consumption: at 12 Volt 0.7 WattAvailable in different colours.Scope of delivery: 1 piece including mating plug (connecting plug) with 210 mm cable, for H4 halogen bulbs, connections:Green cable = ground (-)Blue cable = high beam (+) White cable = low beam (+)Note 1:Use asymmetrical, only permitted for right-hand traffic.Note 2:If this headlight is to be fitted to a BMW R nine T 2017, the additional resistor with article number 207-032 is required.Can be ordered optionallySpare insert chrome: Item no.: 226-014
