FARO DELANTERO LED HIGHSIDER RENO TIPO 3 (MONTAJE LATERAL)

HIGHSIDER 7 INCH LED HEADLAMP RENO TYPE 3

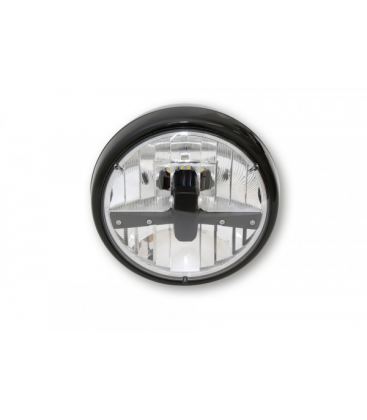

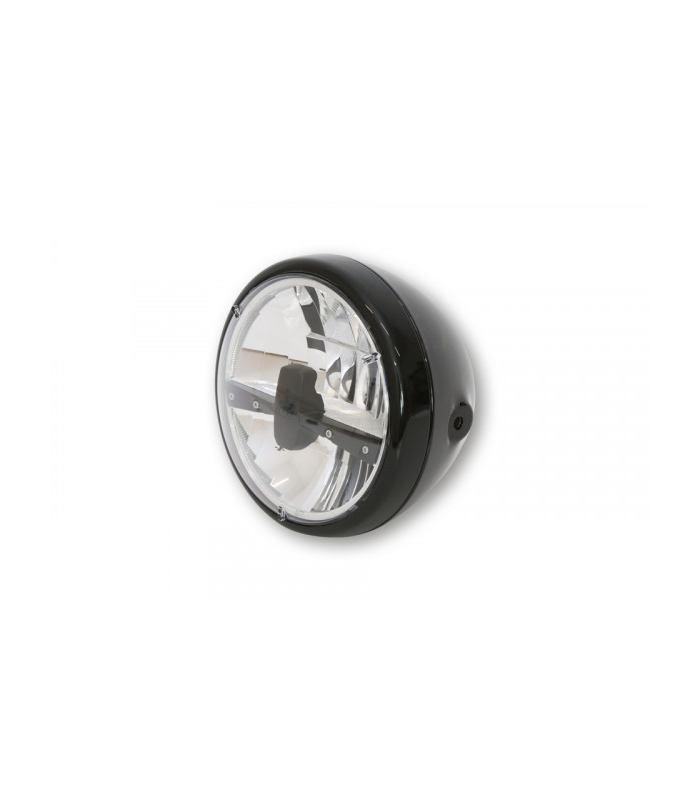

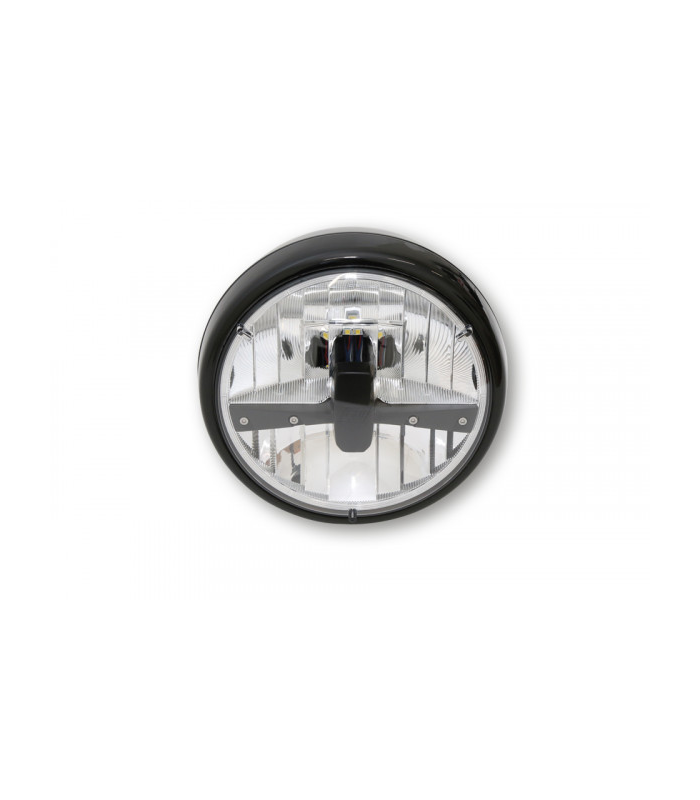

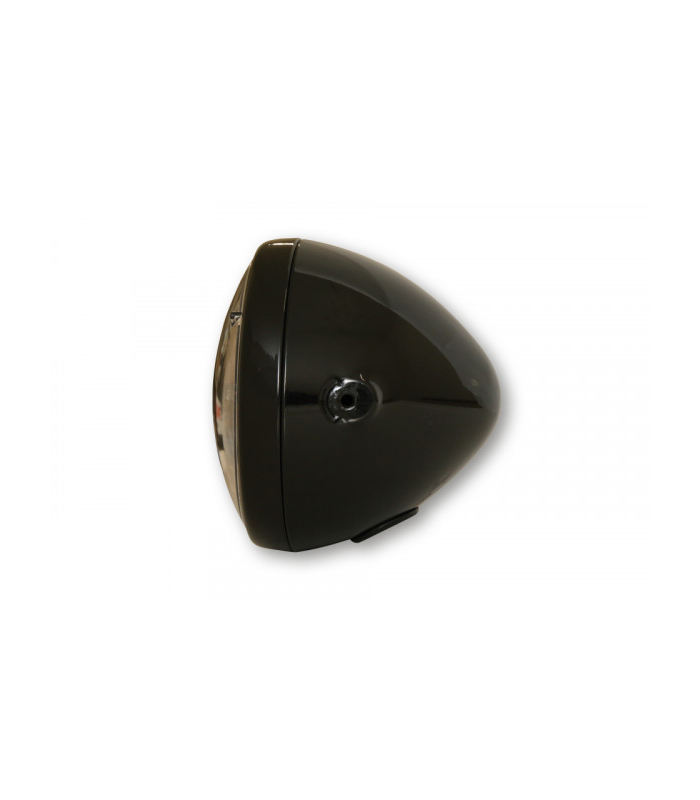

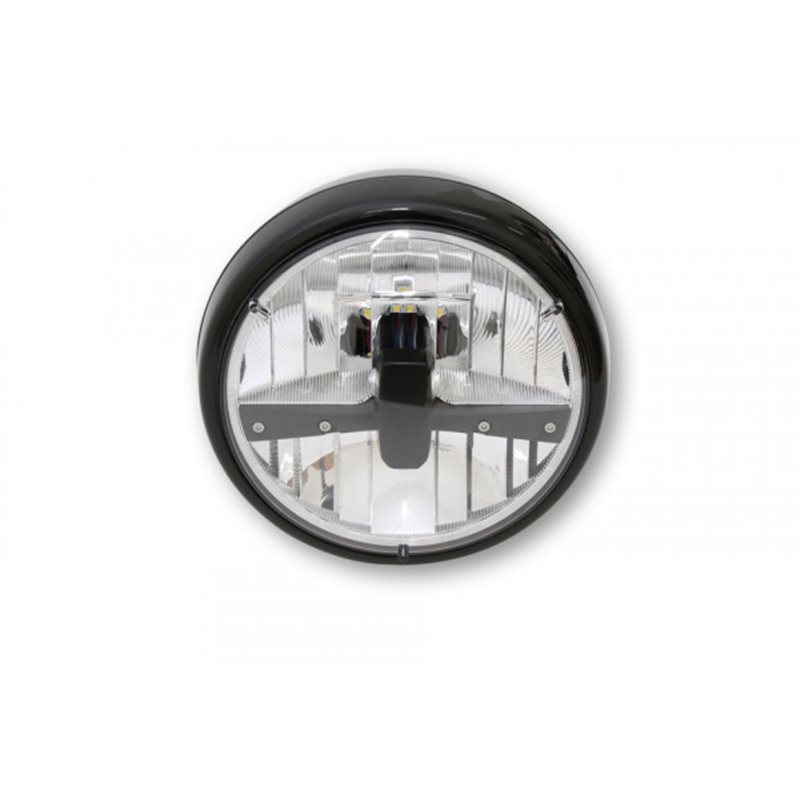

HIGHSIDER 7 inch LED headlamp RENO TYPE 3Innovative Power-LED headlight with parking light in metal housing for side mount. This model comes with a chromed LED-insert, chromed lens shield and clear lens. Headlight is equipped with an asymmetric reflector - approved only for right-hand driving, E-marked.Our highlights give your bike its unique style! The exceptional design and the perfect technology of the HIGHSIDER headlight series makes you absolutely to a highlight!Dimensions headlamp:Housing diameter: 200 mm Diameter headlight insert: 178 mmHousing depth: 160 mmHole spacing mounting holes (center - center): 170 mmHole spacing from mounting hole to the end of housing: approx. 90 mmSide mount with M8 mounting boltConnections: 3-pin plug type A, female cable length 210 mm (included in delivery)Green cable = ground (-)Blue cable = high beam (+)White cable = low beam (+)On the reflector in the headlight housing:Black cable = ground (-)Red cable = low beam (+), power consumption: at 12 Volt 18 Watt, approx. 1132 Lumen.White cable = high beam (+), power consumption: at 12 Volt 30 Watt, approx. 1770 Lumen.Brown cable = parking light (+), power consumption: at 12 Volt 0.7 WattScope of delivery: 1 piece, including 3-pin mating connectorNoteAsymmetric reflector - approved only for right-hand driving.Optionally availableSpare reflector, black: Item No. 226-015
