HIGHSIDER FLASHER RELAY PW-NANO

HIGHSIDER FLASHER RELAY PW-NANO

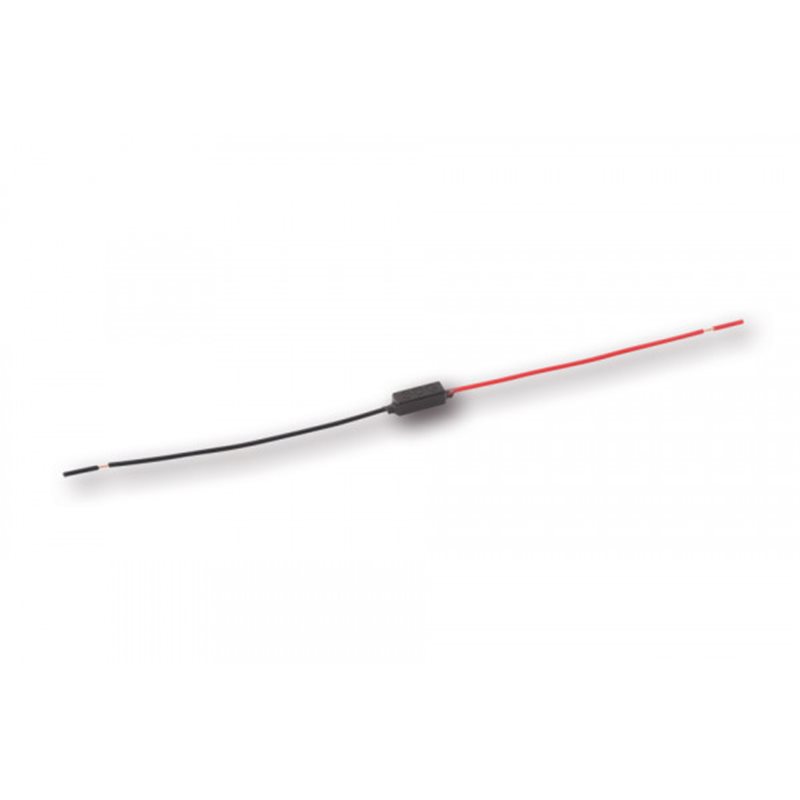

HIGHSIDER PW-NANOExtremely tiny digital flasher relay, ideal for LED indicators, but also perfect for common 10 Watt or 21 Watt bulb indicators. Fit in most handle bar tubes or frames. Absolut frequency stabilized, waterproof and vibration resistant. Made in Germany.Accurate matched our expansive HIGHSIDER equipment is perfectly fitting for your motorcycle. With a maximum of quality and functionality you can design your bike according to your wishes.DimensionsLength: 15 mmWidth: 5 mmHeight: 6 mmSpecificationsFor indicators from 0,1 to 21 WattOperating voltage: 8 V - 18 VLoad range from 0,1 to 42 Watt per SideCable assignment Easy 2 wire installationRed = 12 V (+) connect with terminal 49, please prefix a 10 A fuse Black = ground (-) connect in series to indicator switch with terminal 49aDelivery contents: 1 Pcs.NotesSome British motorcycles (BSA, Norton...) all loads are switched over ground, plus pole = frame. Mounting PW Nano, please note, that the black cable should indicate to battery ground, the red cable to the switch.Do not use for pushbutton switch.No displacement for flasher relay with hazard switch or other additional functions.Order optionalFitting HIGHSIDER LED indicator/front position light, Item-No. 204-260HIGHSIDER LED taillight/indicator, Item-No. 254-261
